Unitma

Unitma Quick Ray Manual Tissue Microarrayer Recipient Block Mold Kit

UM01-1/UM01-1.5/UM01-2/UM01-3/UM01-5

Contact us for more information.

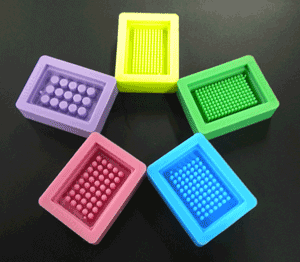

The Recipient block mold kit is an alternative solution for users to prepare the recipient block themselves. The recipient block can be used to process TMA works with the Quick Ray manual tissue microarrayer. Researchers can prepare hundreds of recipient blocks if the mold kits (made from silicon rubber) are stored and handled with care.

Kit available in 1mm, 1.5mm, 2mm, 3mm or 5mm

Quick_Ray_User_Guide.pdf



Specification

Product name Recipient Block Mold Kit
Model Number Core size Number of cores
UM01-1 1 mm 170 (10 x 17) holes
UM01-1.5 1.5 mm 150 (10 x 15) holes
UM01-2 2 mm 70 (7 x 10) holes
UM01-3 3 mm 40 (5 x 8) holes
UM01-5 5 mm 15 (3 x 5) holes
Outside Dimension 38 x 50 x 14 mm
Inside Dimension 25 x 38 x 5.5 mm
Weight 22g
Storage temperature Room temperature
Material Silicon rubber
